Description
[CLICK HERE FOR 12G DATA SHEET]
[CLICK HERE FOR 14G DATA SHEET]

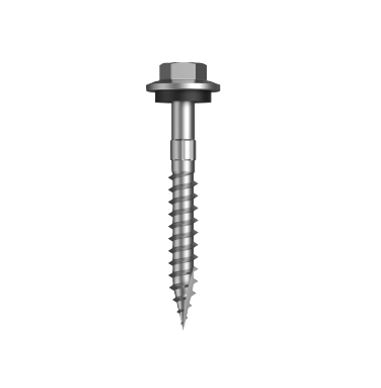

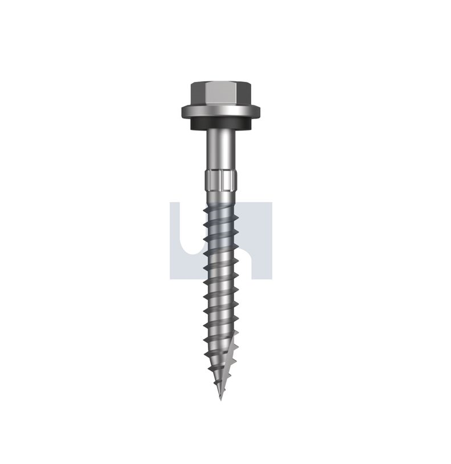

- For fixing steel roofing and cladding to timber framing
| Part | QFind | Description | Product | Finish | Size | Length |
|---|---|---|---|---|---|---|
| T9PW4SS1211045 | Q605 | CL4 T17 SEAL HX S:12-11X 45 | TYPE 17 HEX HEAD + WASHER | CLASS 4 | #12-11 | 45 |
| T9PW4SS1211050 | Q610 | CL4 T17 SEAL HX S:12-11X 50 | TYPE 17 HEX HEAD + WASHER | CLASS 4 | #12-11 | 50 |
| T9PW4SS1211065 | Q613 | CL4 T17 SEAL HX S:12-11X 65 | TYPE 17 HEX HEAD + WASHER | CLASS 4 | #12-11 | 65 |
| T9PW4SS1410050 | Q625 | CL4 T17 SEAL HX S:14-10X 50 | TYPE 17 HEX HEAD + WASHER | CLASS 4 | #14-10 | 50 |
| T9PW4SS1410065 | Q630 | CL4 T17 SEAL HX S:14-10X 65 | TYPE 17 HEX HEAD + WASHER | CLASS 4 | #14-10 | 65 |
| T9PW4SS1410075 | Q635 | CL4 T17 SEAL HX S:14-10X 75 | TYPE 17 HEX HEAD + WASHER | CLASS 4 | #14-10 | 75 |
| T9PW4SS1410090 | Q640 | CL4 T17 SEAL HX S:14-10X 90 | TYPE 17 HEX HEAD + WASHER | CLASS 4 | #14-10 | 90 |
| T9PW4SS1410100 | Q645 | CL4 T17 SEAL HX S:14-10X100 | TYPE 17 HEX HEAD + WASHER | CLASS 4 | #14-10 | 100 |
| T9PW4SS1410115 | Q650 | CL4 T17 SEAL HX S:14-10X115 | TYPE 17 HEX HEAD + WASHER | CLASS 4 | #14-10 | 115 |
| T9PW4SS1410125 | Q655 | CL4 T17 SEAL HX S:14-10X125 | TYPE 17 HEX HEAD + WASHER | CLASS 4 | #14-10 | 125 |
| T9PW4SS1410150 | Q660 | CL4 T17 SEAL HX S:14-10X150 | TYPE 17 HEX HEAD + WASHER | CLASS 4 | #14-10 | 150 |
