Description
• Extended drill point and fine pitch (24 TPI) thread allows self-drilling in metal up to 12mm in thickness
• No pre-drilling required
• Corrosion performance to Class 4 as per AS3566.2d

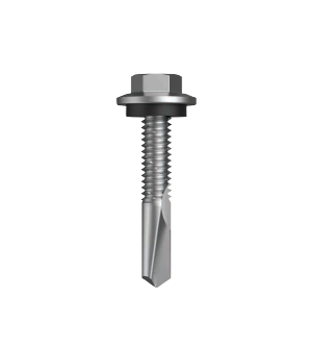

• Hexagon Head Series
Applications
• Metal to metal fixing
• Thick steel purlins and hot rolled steel
• Roofing and walling sheets to hot rolled steel
| Part | QFind | Description | Product | Finish | Size | Length |
|---|---|---|---|---|---|---|
| T9P54SH1224032 | Q486 | CL4 S500 SEAL HX:12-24X 32 | S500 SDS HEX HEAD + WASHER | CLASS 4 | #12-24 | 32 |
| T9P54SH1224050 | Q488 | CL4 S500 SEAL HX:12-24X 50 | S500 SDS HEX HEAD + WASHER | CLASS 4 | #12-24 | 50 |
| T9P54SH1224065 | Q490 | CL4 S500 SEAL HX:12-24X 65 | S500 SDS HEX HEAD + WASHER | CLASS 4 | #12-24 | 65 |
| T9P54SH1224085 | Q489 | CL4 S500 SEAL HX:12-24X 85 | S500 SDS HEX HEAD + WASHER | CLASS 4 | #12-24 | 85 |
