Description
The WSV is the best solution for fixing subfloor, bracing, bottom plate and stair applications. Simpson Strong-Tie has re‑engineered its popular subfloor screw to reduce torque and save time. The WSV screw reduces the gaps between the joist and subfloor that cause floor squeaks due to its superior holding power.
Evaluated for Diaphragm Flooring
Simpson Strong-Tie WSV Subfloor Screws are dual-evaluated per ICC-ES AC233 and ICC-ES AC120 (Report ESR-1472).
Material
Carbon Steel
Finish
Yellow Zinc
Features & Benefits
- The WSV tip and thread pattern provide easy starts and up to 25% less torque – which leads to 20% faster driving
- Less torque means less wear on tools

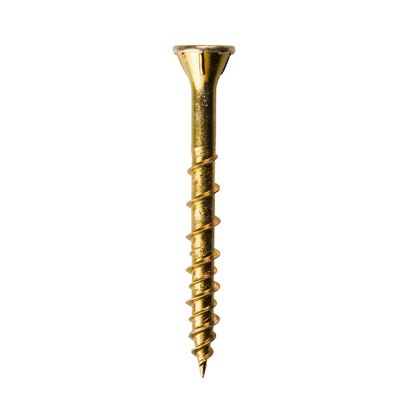

- Head design provides a clean countersink and prevents cam-outs
- A combination of the thread and head design gives greater clamping force to eliminate squeaking floors
- Can be easily backed out, unlike nails
- WSV screws comply with AS1860.2
Applications
- Subfloor, Mid Floor
- Timber-to-Timber
- Timber Flooring
Approvals
ESR-1472
| Model No. | Size | Thread | Point | Material & Finish | Box Qty | Drive Size | Replacement Bit |
|---|---|---|---|---|---|---|---|
| WSV45SA | 10G x 45mm | Aggressive Variable Threads | Sharp Point | Carbon Steel Yellow Zinc | 2000 | T-25, 6-lobe | BITTX25-RC10 |
| WSV50SA | 10G x 50mm | Aggressive Variable Threads | Sharp Point | Carbon Steel Yellow Zinc | 2000 | T-25, 6-lobe | BITTX25-RC10 |
| WSV50-2500 | 10G x 50mm | Aggressive Variable Threads | Sharp Point | Carbon Steel Yellow Zinc | 2500 | T-25, 6-lobe | BITTX25-RC10 |
| WSV64SA | 10G x 64mm | Aggressive Variable Threads | Sharp Point | Carbon Steel Yellow Zinc | 1500 | T-25, 6-lobe | BITTX25-RC10 |
| WSV75SA | 10G x 75mm | Aggressive Variable Threads | Sharp Point | Carbon Steel Yellow Zinc | 1000 | T-25, 6-lobe | BITTX25-RC10 |
