Description
90° Three Flute for countersinking/counterboring screw holes
Made to DIN335 specifications
Made from M2 High Speed Steel (HSS) offering the best combination of strength, heat & wear resistance
Bright finish for general purpose applications, non-ferrous metals & plastics
| Item # | Diameter d1 (mm) | Diameter d2 (mm) | Length l1 (mm) | Range | Angle | Screw Head |
|---|---|---|---|---|---|---|

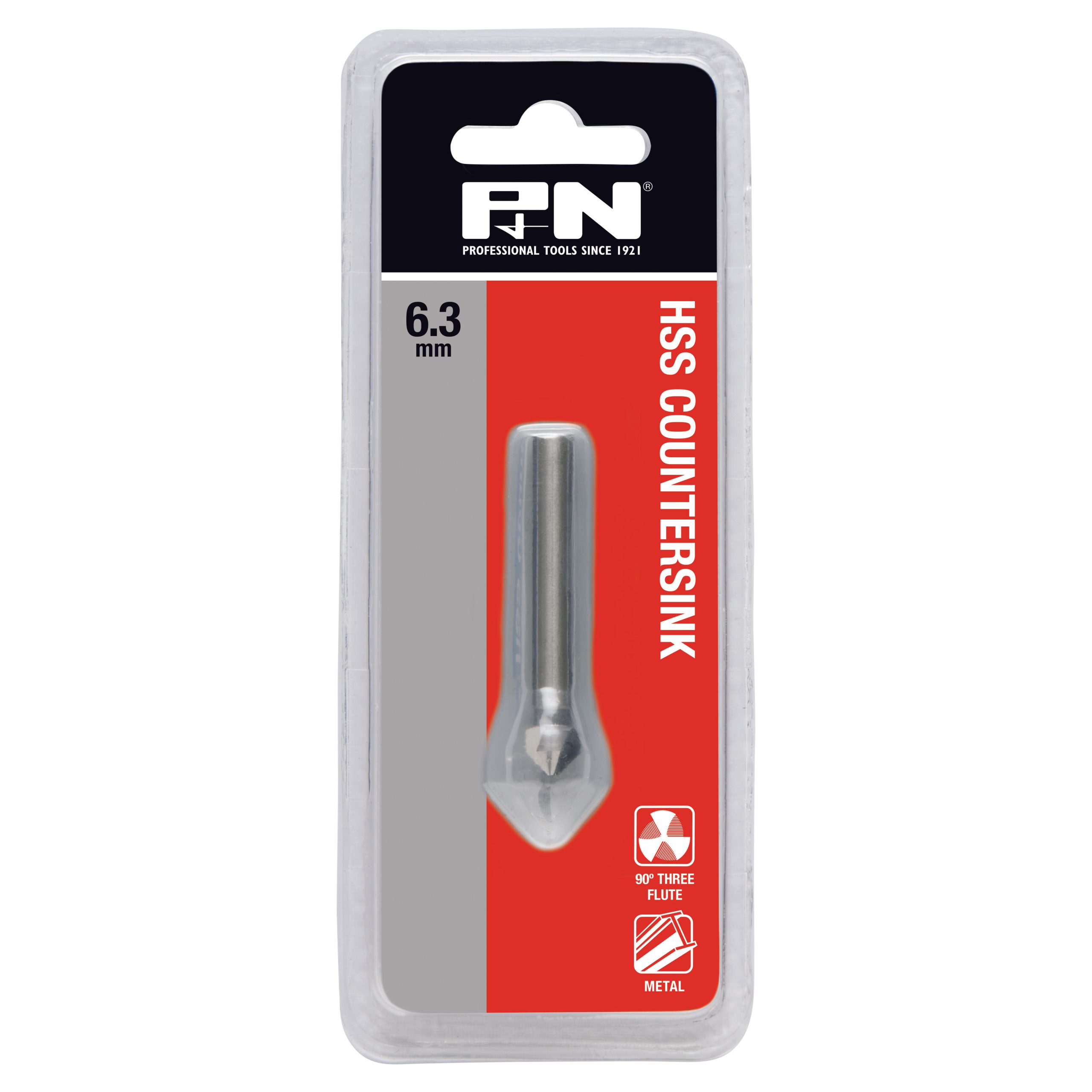

| 107CS0063 | 6.30 | 5.0 | 45 | 1.5 – 6.3 | 90Ëš | M3 |
| 107CS0083 | 8.30 | 6.0 | 50 | 2.0 – 8.3mm | 90Ëš | M4 |
| 107CS0104 | 10.40 | 6.0 | 50 | 2.5 – 10.4mm | 90Ëš | M5 |
| 107CS0165 | 16.50 | 10.0 | 60 | 3.2 – 16.5mm | 90Ëš | M8 |
| 107CS0250 | 25.00 | 10.0 | 67 | 3.8 – 25.0mm | 90Ëš | M12 |
| C201H1240 | 12.40 | 8.0 | 56 | 2.8 – 12.4mm | 90Ëš | M6 |
| C201H2050 | 20.50 | 10.0 | 63 | 3.5 – 20.5mm | 90Ëš | M10 |
