Description

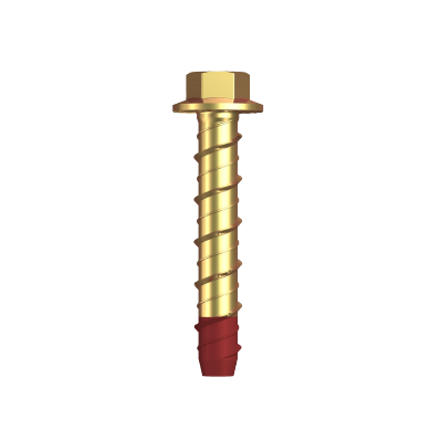

Xbolts are single unit screw type anchors that are used in solid concrete applications. Fixing is achieved by screwing the anchor into the hole. As it is screwed in, it created its own undercut by tapping the concrete hole. The cutting and locking mechanism enables the anchor to be used in close spacing and edge distance applications.
Applications:
- Hand rail fastening
- Formwork support fastening
- Mechanical, electrical and pipe bracket fastening
- Bottom Plates
Features
• Suitable for medium to heavy loads
• Suitable for small anchor spacing and edge distance applications
• Quick and easy to install
• Fully removable
| Part | QFind | Description | Product | Finish | Size | Len |
|---|---|---|---|---|---|---|
| MXHMSYM060030 | MXH120 | ZYP XBOLT HEX: M6 X 30 | XBOLT – HEX FLANGE HEAD | ZINC YELLOW PASSIVATE | M6 | 30 |
| MXHMSYM060050 | MXH121 | ZYP XBOLT HEX: M6 X 50 | XBOLT – HEX FLANGE HEAD | ZINC YELLOW PASSIVATE | M6 | 50 |
| MXHMSYM060075 | MXH122 | ZYP XBOLT HEX: M6 X 75 | XBOLT – HEX FLANGE HEAD | ZINC YELLOW PASSIVATE | M6 | 75 |
| MXHMSYM060100 | MXH123 | ZYP XBOLT HEX: M6 X 100 | XBOLT – HEX FLANGE HEAD | ZINC YELLOW PASSIVATE | M6 | 100 |
| MXHMSYM050030 | MXH118 | ZYP XBOLT HEX: M5 X 30 | XBOLT – HEX FLANGE HEAD | ZINC YELLOW PASSIVATE | M5 | 30 |
| MXHMSYM050050 | MXH119 | ZYP XBOLT HEX: M5 X 50 | XBOLT – HEX FLANGE HEAD | ZINC YELLOW PASSIVATE | M5 | 50 |
| MXHMSYM080050 | MXH124 | ZYP XBOLT HEX: M8 X 50 | XBOLT – HEX FLANGE HEAD | ZINC YELLOW PASSIVATE | M8 | 50 |
| MXHMSYM080060 | MXH125 | ZYP XBOLT HEX: M8 X 60 | XBOLT – HEX FLANGE HEAD | ZINC YELLOW PASSIVATE | M8 | 60 |
| MXHMSYM080075 | MXH126 | ZYP XBOLT HEX: M8 X 75 | XBOLT – HEX FLANGE HEAD | ZINC YELLOW PASSIVATE | M8 | 75 |
| MXHMSYM080100 | MXH127 | ZYP XBOLT HEX: M8 X 100 | XBOLT – HEX FLANGE HEAD | ZINC YELLOW PASSIVATE | M8 | 100 |
| MXHMSYM100060 | MXH128 | ZYP XBOLT HEX: M10 X 60 | XBOLT – HEX FLANGE HEAD | ZINC YELLOW PASSIVATE | M10 | 60 |
| MXHMSYM100075 | MXH129 | ZYP XBOLT HEX: M10 X 75 | XBOLT – HEX FLANGE HEAD | ZINC YELLOW PASSIVATE | M10 | 75 |
| MXHMSYM100100 | MXH130 | ZYP XBOLT HEX: M10 X 100 | XBOLT – HEX FLANGE HEAD | ZINC YELLOW PASSIVATE | M10 | 100 |
| MXHMSYM100120 | MXH131 | ZYP XBOLT HEX: M10 X 120 | XBOLT – HEX FLANGE HEAD | ZINC YELLOW PASSIVATE | M10 | 120 |
| MXHMSYM100150 | MXH132 | ZYP XBOLT HEX: M10 X 150 | XBOLT – HEX FLANGE HEAD | ZINC YELLOW PASSIVATE | M10 | 150 |
| MXHMSYM120075 | MXH133 | ZYP XBOLT HEX: M12 X 75 | XBOLT – HEX FLANGE HEAD | ZINC YELLOW PASSIVATE | M12 | 75 |
| MXHMSYM120100 | MXH134 | ZYP XBOLT HEX: M12 X 100 | XBOLT – HEX FLANGE HEAD | ZINC YELLOW PASSIVATE | M12 | 100 |
| MXHMSYM120150 | MXH135 | ZYP XBOLT HEX: M12 X 150 | XBOLT – HEX FLANGE HEAD | ZINC YELLOW PASSIVATE | M12 | 150 |
| MXHMSYM160100 | MXH136 | ZYP XBOLT HEX: M16 X 100 | XBOLT – HEX FLANGE HEAD | ZINC YELLOW PASSIVATE | M16 | 100 |
| MXHMSYM160150 | MXH137 | ZYP XBOLT HEX: M16 X 150 | XBOLT – HEX FLANGE HEAD | ZINC YELLOW PASSIVATE | M16 | 150 |
