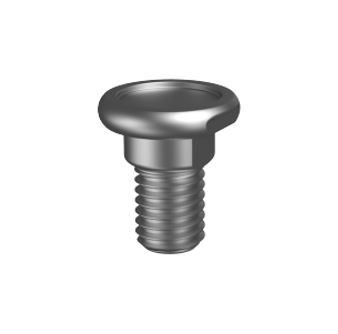

Description
APPLICATIONS
• Installing splice plates, brackets or other accessories into cable trays or ladders
FEATURES
• Smooth head to eliminate sheathing the cable
• Square neck to fit into cable tray nut (counterbore)
• Flat sides on neck/shoulder of bolt to eliminate turning inside hole on the cable tray ladder
Technical Specifications
| Part | Diameter (D) | Length (L) | Head Height (H) | Across Flats (AF) | Thread Size (T) |
|---|---|---|---|---|---|
| BRMSGTCM10022 HTBG | 10 mm | 22 mm | 3.8–4.2 mm | 16.8–17.0 mm | 12.0-12.5 mm |
