Description

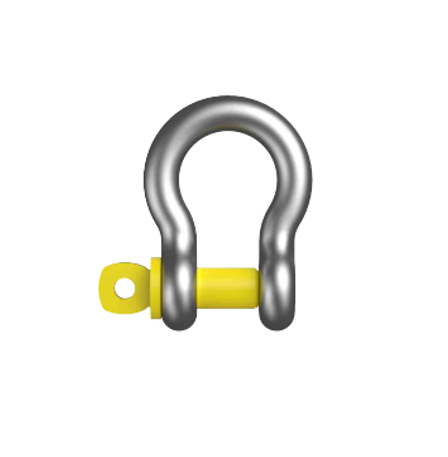

Lifting Bow Shackle Screw Pin
Screw pin bow shackles used for lifting, tensioning and staying systems. Manufactures and marks in accordance with AS 2741.
Applications
– Links in lifting systems
– Rigging connections
– Tensions structures
– Multi sling connections
– Vehicle recovery and towing
Features
• Galvanised finish with yellow painted Pin
• Approved for lifting
• Screw Pin
| Part | QFind | Description | Product | Finish | Size |
|---|---|---|---|---|---|
| ULSHGSGBD-05 | BDS5 | HDG GRS HEC2741 BOW SHKL: 5MM | LIFTING BOW SHACKLE SCREW PIN | HOT DIP GALVANISED | 5mm |
| ULSHGSGBD-06 | BDS6 | HDG GRS HEC2741 BOW SHKL: 6MM | LIFTING BOW SHACKLE SCREW PIN | HOT DIP GALVANISED | 6mm |
| ULSHGSGBD-08 | BDS8 | HDG GRS HEC2741 BOW SHKL: 8MM | LIFTING BOW SHACKLE SCREW PIN | HOT DIP GALVANISED | 8mm |
| ULSHGSGBD-10 | BDS10 | HDG GRS HEC2741 BOW SHKL: 10MM | LIFTING BOW SHACKLE SCREW PIN | HOT DIP GALVANISED | 10mm |
| ULSHGSGBD-11 | BDS11 | HDG GRS HEC2741 BOW SHKL: 11MM | LIFTING BOW SHACKLE SCREW PIN | HOT DIP GALVANISED | 11mm |
| ULSHGSGBD-13 | BDS13 | HDG GRS HEC2741 BOW SHKL: 13MM | LIFTING BOW SHACKLE SCREW PIN | HOT DIP GALVANISED | 13mm |
| ULSHGSGBD-16 | BDS16 | HDG GRS HEC2741 BOW SHKL: 16MM | LIFTING BOW SHACKLE SCREW PIN | HOT DIP GALVANISED | 16mm |
| ULSHGSGBD-19 | BDS19 | HDG GRS HEC2741 BOW SHKL: 19MM | LIFTING BOW SHACKLE SCREW PIN | HOT DIP GALVANISED | 19mm |
| ULSHGSGBD-22 | BDS22 | HDG GRS HEC2741 BOW SHKL: 22MM | LIFTING BOW SHACKLE SCREW PIN | HOT DIP GALVANISED | 22mm |
| ULSHGSGBD-25 | BDS25 | HDG GRS HEC2741 BOW SHKL: 25MM | LIFTING BOW SHACKLE SCREW PIN | HOT DIP GALVANISED | 25mm |
| ULSHGSGBD-29 | BDS29 | HDG GRS HEC2741 BOW SHKL: 29MM | LIFTING BOW SHACKLE SCREW PIN | HOT DIP GALVANISED | 29mm |
| ULSHGSGBD-32 | BDS32 | HDG GRS HEC2741 BOW SHKL: 32MM | LIFTING BOW SHACKLE SCREW PIN | HOT DIP GALVANISED | 32mm |
| ULSHGSGBD-35 | BDS35 | HDG GRS HEC2741 BOW SHKL: 35MM | LIFTING BOW SHACKLE SCREW PIN | HOT DIP GALVANISED | 35mm |
| ULSHGSGBD-38 | BDS38 | HDG GRS HEC2741 BOW SHKL: 38MM | LIFTING BOW SHACKLE SCREW PIN | HOT DIP GALVANISED | 38mm |
| ULSHGSGBD-44 | BDS44 | HDG GRS HEC2741 BOW SHKL: 44MM | LIFTING BOW SHACKLE SCREW PIN | HOT DIP GALVANISED | 44mm |
| ULSHGSGBD-51 | BDS51 | HDG GRS HEC2741 BOW SHKL: 51MM | LIFTING BOW SHACKLE SCREW PIN | HOT DIP GALVANISED | 51mm |
| ULSHGSGBD-63 | BDS63 | HDG GRS HEC2741 BOW SHKL: 63MM | LIFTING BOW SHACKLE SCREW PIN | HOT DIP GALVANISED | 63mm |
