Description

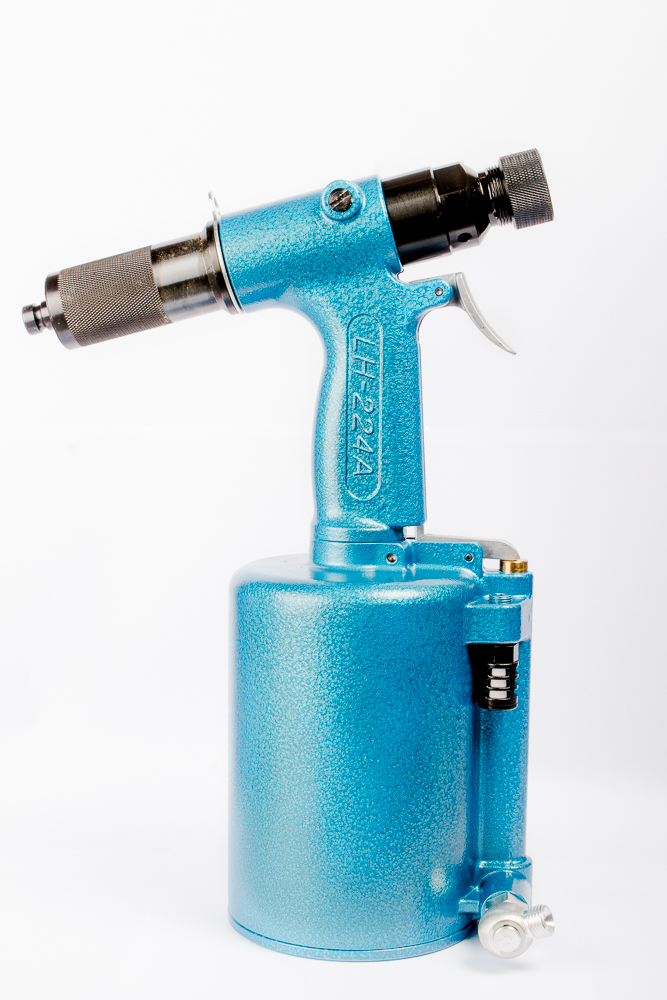

The LH-224 is intended for fast efficient installation of all HUCK fasteners up to and including 1/4″ Diameter when coupled with the correct Nose assembly.
Nose pieces for the HUCK LH-224 must also be purchased with the tool and vary depending on what rivets you are pulling:
Huck LH224 Nose Assembly Australian Fasteners
99-3300 – NOSE ASSEMBLY 3/16″ MAGNALOK/MAGNABULB
99-3301 – NOSE ASSEMBLY 1/4″ MAGNALOK/MAGNABULB/HUCKLOK
99-3201 –Â NOSE ASSEMBLY 3/16″ MAGNAGRIP
99-3204 –Â NOSE ASSEMBLY 1/4″ MAGNAGRIP
Specifications:
Weight: 2.8 kg (6.17 lbs.)
Required Air Pressure: 6.21-6.9 bar (90-100 psi)
Stroke: 21 mm (0.828″)
Hydraulic Fluid: Automatic Transmission Fluid DEXTRON II® or equivalent
Capacity: 19 kN @ 6.21 bar (4271 Ibs @ 90 psi)
