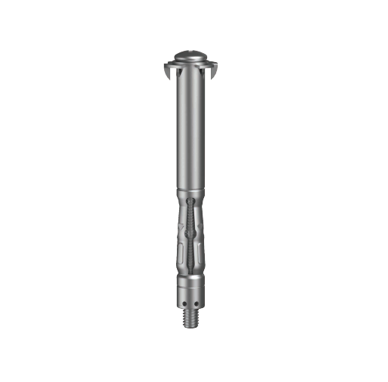

Description
All metal (light duty) cavity fixing for plasterboard and other hollow wall materials up to 38mm in thickness.
Applications
• Electrical fittings
• Light fixtures
• Brackets
• Hooks
Features:
• Combination Drive: Philips/Slot
• Cavity Fixing: Plasterboard and other hollow wall materials
• Barbs: Anti-rotational spikes built onto the flange to prevent the anchor from spinning
HOLLOW WALL ANCHOR SETTING TOOL
| Part | QFind | Description | Product | Finish | Size | Len |
|---|---|---|---|---|---|---|
| MWHDZPCM040030 | MWH100 | Z/P HOLLOW WALL:M4X0(0-4)30 | HOLLOW WALL ANCHOR STANDARD | ZINC PLATED (ROHS COMPLIANT)ZINC PLATED (ROHS COMPLIANT) | M4 | 30 |
| MWHDZPCM040641 | MWH101 | Z/P HOLLOW WALL:M4X6(4-9)41 | HOLLOW WALL ANCHOR STANDARD | ZINC PLATED (ROHS COMPLIANT)ZINC PLATED (ROHS COMPLIANT) | M4 | 41 |
| MWHDZPCM041147 | MWH102 | Z/P HOLLOW WALL:M4X11(9-15)47 | HOLLOW WALL ANCHOR STANDARD | ZINC PLATED (ROHS COMPLIANT)ZINC PLATED (ROHS COMPLIANT) | M4 | 47 |
| MWHDZPCM041753 | MWH103 | Z/P HOLLOW WALL:M4X17(15-21)53 | HOLLOW WALL ANCHOR STANDARD | ZINC PLATED (ROHS COMPLIANT)ZINC PLATED (ROHS COMPLIANT) | M4 | 53 |
| MWHDZPCM043167 | MWH104 | Z/P HOLLOW WALL:M4X31(30-38)67 | HOLLOW WALL ANCHOR STANDARD | ZINC PLATED (ROHS COMPLIANT)ZINC PLATED (ROHS COMPLIANT) | M4 | 67 |
| MWHDZPCM050546 | MWH105 | Z/P HOLLOW WALL:M5X5(5-13)46 | HOLLOW WALL ANCHOR STANDARD | ZINC PLATED (ROHS COMPLIANT)ZINC PLATED (ROHS COMPLIANT) | M5 | 46 |
| MWHDZPCM050759 | MWH106 | Z/P HOLLOW WALL:M5X7(5-17)59 | HOLLOW WALL ANCHOR STANDARD | ZINC PLATED (ROHS COMPLIANT)ZINC PLATED (ROHS COMPLIANT) | M5 | 59 |
| MWHDZPCM060546 | MWH107 | Z/P HOLLOW WALL:M6X5(4-13)46 | HOLLOW WALL ANCHOR STANDARD | ZINC PLATED (ROHS COMPLIANT)ZINC PLATED (ROHS COMPLIANT) | M6 | 46 |
| MWHDZPCM060759 | MWH108 | Z/P HOLLOW WALL:M6X7(5-18)59 | HOLLOW WALL ANCHOR STANDARD | ZINC PLATED (ROHS COMPLIANT)ZINC PLATED (ROHS COMPLIANT) | M6 | 59 |
