Description

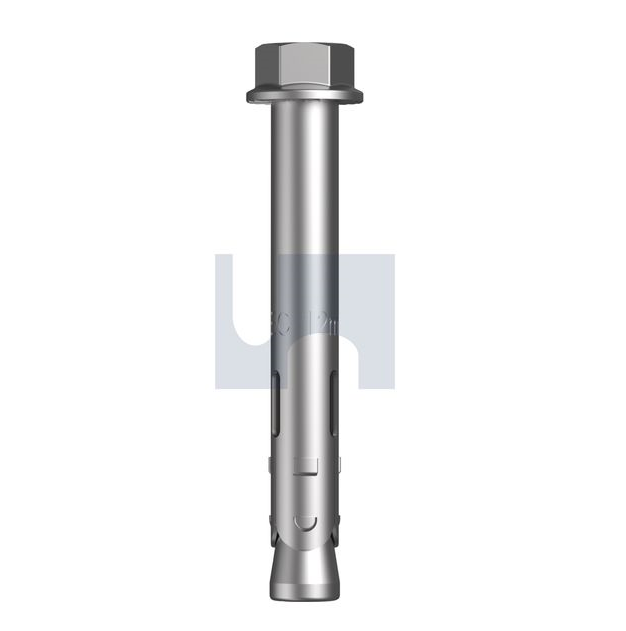

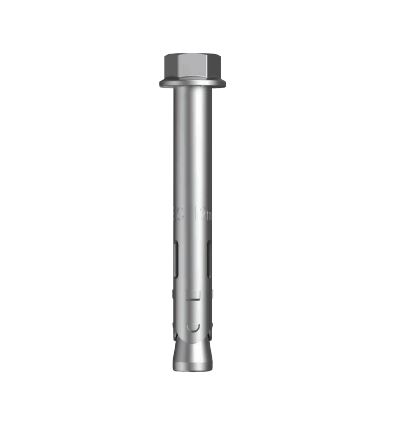

The Tygabolt® is a fully-assembled single unit wedge-type anchors used in solid concrete applications. Fixing is achieved by controlled torquing of the nut which draws the cone section up in the sleeve, thereby expanding it outward and forcing the Tygabolt® against the sidewall of the pre-drilled hole.
Features
• Suitable for light to medium duty loads
• Quick and easy to install
• Immediate loading is possible
• Expansion claws that prevent rotation during tightening
• Cold formed cone for efficient expansion of the sleeve
Applications
• Hand rail fastening
• Form-work support fastening
• Mechanical, electrical and pipe bracket fastening
| Part | QFind | Description | Product | Finish | Size | Len |
|---|---|---|---|---|---|---|
| MTBMSGM080040 | MTB111 | MGAL TYGABOLT: 8MM X 40 | TYGABOLT (SLEEVE ANCHOR) | MECHANICAL GALVANISED | 8mm | 40 |
| MTBMSGM080060 | MTB112 | MGAL TYGABOLT: 8MM X 60 | TYGABOLT (SLEEVE ANCHOR) | MECHANICAL GALVANISED | 8mm | 60 |
| MTBMSGM080080 | MTB113 | MGAL TYGABOLT: 8MM X 80 | TYGABOLT (SLEEVE ANCHOR) | MECHANICAL GALVANISED | 8mm | 80 |
| MTBMSGM100040 | MTB114 | MGAL TYGABOLT: 10MM X 40 | TYGABOLT (SLEEVE ANCHOR) | MECHANICAL GALVANISED | 10mm | 40 |
| MTBMSGM100050 | MTB115 | MGAL TYGABOLT: 10MM X 50 | TYGABOLT (SLEEVE ANCHOR) | MECHANICAL GALVANISED | 10mm | 50 |
| MTBMSGM100060 | MTB116 | MGAL TYGABOLT: 10MM X 60 | TYGABOLT (SLEEVE ANCHOR) | MECHANICAL GALVANISED | 10mm | 60 |
| MTBMSGM100075 | MTB117 | MGAL TYGABOLT: 10MM X 75 | TYGABOLT (SLEEVE ANCHOR) | MECHANICAL GALVANISED | 10mm | 75 |
| MTBMSGM100100 | MTB118 | MGAL TYGABOLT: 10MM X 100 | TYGABOLT (SLEEVE ANCHOR) | MECHANICAL GALVANISED | 10mm | 100 |
| MTBMSGM120060 | MTB119 | MGAL TYGABOLT: 12MM X 60 | TYGABOLT (SLEEVE ANCHOR) | MECHANICAL GALVANISED | 12mm | 60 |
| MTBMSGM120080 | MTB120 | MGAL TYGABOLT: 12MM X 80 | TYGABOLT (SLEEVE ANCHOR) | MECHANICAL GALVANISED | 12mm | 80 |
| MTBMSGM120100 | MTB121 | MGAL TYGABOLT: 12MM X 100 | TYGABOLT (SLEEVE ANCHOR) | MECHANICAL GALVANISED | 12mm | 100 |
| MTBMSGM120120 | MTB122 | MGAL TYGABOLT: 12MM X 120 | TYGABOLT (SLEEVE ANCHOR) | MECHANICAL GALVANISED | 12mm | 120 |
| MTBMSGM160065 | MTB123 | MGAL TYGABOLT: 16MM X 65 | TYGABOLT (SLEEVE ANCHOR) | MECHANICAL GALVANISED | 16mm | 65 |
| MTBMSGM160105 | MTB124 | MGAL TYGABOLT: 16MM X 105 | TYGABOLT (SLEEVE ANCHOR) | MECHANICAL GALVANISED | 16mm | 105 |
| MTBMSGM160145 | MTB125 | MGAL TYGABOLT: 16MM X 145 | TYGABOLT (SLEEVE ANCHOR) | MECHANICAL GALVANISED | 16mm | 145 |
| MTBMSGM200075 | MTB126 | MGAL TYGABOLT: 20MM X 75 | TYGABOLT (SLEEVE ANCHOR) | MECHANICAL GALVANISED | 20mm | 75 |
| MTBMSGM200100 | MTB127 | MGAL TYGABOLT: 20MM X 100 | TYGABOLT (SLEEVE ANCHOR) | MECHANICAL GALVANISED | 20mm | 100 |
| MTBMSGM200160 | MTB128 | MGAL TYGABOLT: 20MM X 160 | TYGABOLT (SLEEVE ANCHOR) | MECHANICAL GALVANISED | 20mm | 160 |
