Description

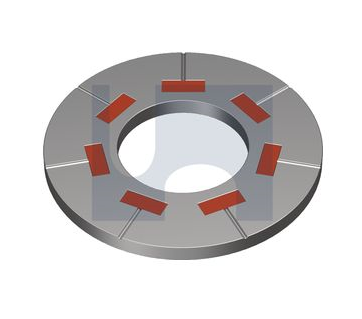

DURASQUIRT DTI WASHERS CLASS 8.8 METRIC GAL / MECHANICAL GALVANISED ASTM F959M / CLASS 8.8
A durable squirt indication that lasts on the connection. Engineered to withstand the elements- wind, heavy rain and extreme temperatures. To prove how much DuraSquirt DTI washers can withstand, it was run through an automated dishwasher for 1 year. Despite the daily punishment of heated turbulent water and detergent, the squirt media was still visible.
Complete indication occurs after minimum tension has been achieved.
Simple to use and easy for installers and inspectors to see when the required tension is achieved. Not affected by poor torque tension correlation factors such as weathering, poor lubrication and damaged threads.

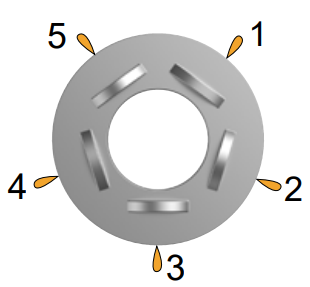

A clear visual indication when the bolt assembly is tensioned correctly by “squirting” bright orange indicator. By using DuraSquirt DTI Washers the installer is alerted to poor quality AS1252 assemblies and other issues in connection.
Independently tested from -50 to 104 degrees Celsius.
