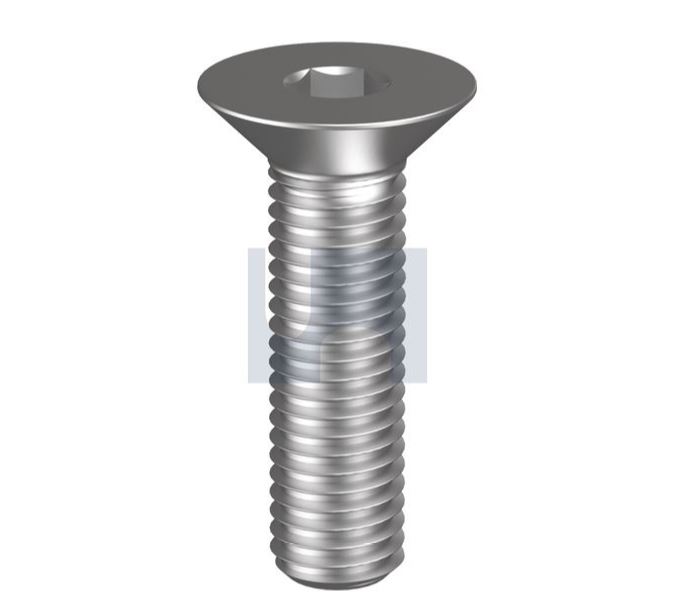

Description
Applications
• Applications that necessitate high-tensile clamp loads
• When requiring a flush or smooth finish to the steel with no protrusion
• Automotive, machinery, and construction industries
Features
• 82 degree taper
• Reduced loadability
• Minimum tensile strength of 145 ksi for 3/8” and 160 ksi for 1/2” and over
• Due to head configurations, countersunk head screw tensile loads are based on 160,000 lbf/in2
Specification
ANSI B18.3 / ASTM F835
| Part | Description | Product | Finish | Size | Length |
|---|---|---|---|---|---|
| SCSOZC0370050 | Z/P SO FHSS: 3/8 UNC X 1/2 | SOCKET SCREW COUNTERSUNK HEX | ZINC PLATED (ROHS COMPLIANT) | 3/8 | 1/2 |
| SCSOZC0370075 | Z/P SO FHSS: 3/8 UNC X 3/4 | SOCKET SCREW COUNTERSUNK HEX | ZINC PLATED (ROHS COMPLIANT) | 3/8 | 3/4 |
| SCSOZC0370100 | Z/P SO FHSS: 3/8 UNC X 1 | SOCKET SCREW COUNTERSUNK HEX | ZINC PLATED (ROHS COMPLIANT) | 3/8 | 1 |
| SCSOZC0500075 | Z/P SO FHSS: 1/2 UNC X 3/4 | SOCKET SCREW COUNTERSUNK HEX | ZINC PLATED (ROHS COMPLIANT) | 1/2 | 3/4 |
| SCSOZC0500100 | Z/P SO FHSS: 1/2 UNC X 1 | SOCKET SCREW COUNTERSUNK HEX | ZINC PLATED (ROHS COMPLIANT) | 1/2 | 1 |
| SCSOZC0500125 | Z/P SO FHSS: 1/2 UNC X 1-1/4 | SOCKET SCREW COUNTERSUNK HEX | ZINC PLATED (ROHS COMPLIANT) | 1/2 | 1-1/4 |
| SCSOZC0500150 | Z/P SO FHSS: 1/2 UNC X 1-1/2 | SOCKET SCREW COUNTERSUNK HEX | ZINC PLATED (ROHS COMPLIANT) | 1/2 | 1-1/2 |
| SCSOZC0500175 | Z/P SO FHSS: 1/2 UNC X 1-3/4 | SOCKET SCREW COUNTERSUNK HEX | ZINC PLATED (ROHS COMPLIANT) | 1/2 | 1-3/4 |
| SCSOZC0500200 | Z/P SO FHSS: 1/2 UNC X 2 | SOCKET SCREW COUNTERSUNK HEX | ZINC PLATED (ROHS COMPLIANT) | 1/2 | 2 |
| SCSOZC0500225 | Z/P SO FHSS: 1/2 UNC X 2-1/4 | SOCKET SCREW COUNTERSUNK HEX | ZINC PLATED (ROHS COMPLIANT) | 1/2 | 2-1/4 |
| SCSOZC0500250 | Z/P SO FHSS: 1/2 UNC X 2-1/2 | SOCKET SCREW COUNTERSUNK HEX | ZINC PLATED (ROHS COMPLIANT) | 1/2 | 2-1/2 |
| SCSOZC0500300 | Z/P SO FHSS: 1/2 UNC X 3 | SOCKET SCREW COUNTERSUNK HEX | ZINC PLATED (ROHS COMPLIANT) | 1/2 | 3 |
