Description

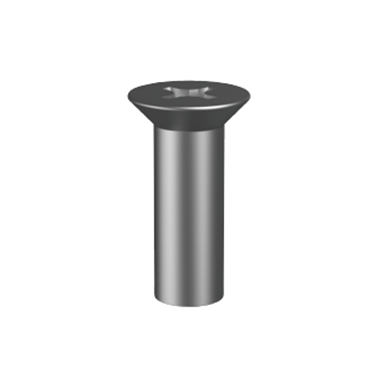

The barrel nut is one half of the fixing in timber and furniture connections. When used with a countersunk metal thread screw the same head is seen from both sides of the connection.
Applications
– Fastening Timber
– Furniture
– Replacement of nut in TygaBolt/Dynabolt anchors to provide contersunk finish
Features
– Internally threaded
– Used as decorative nut installed on the protruding male thread
– 316 stainless steel for enhanced corrosion resistance
[CLICK HERE FOR PRODUCT DATA SHEET]
| Part | QFind | Description | Product | Finish | Size |
|---|---|---|---|---|---|
| MPC16PM05 | MPC100 | 316 BARREL NUT CSK PH3: M5 | BARREL NUT CSK PHILLIPS | 316 STAINLESS | M5 – 14 THRD |
| MPC16PM06 | MPC101 | 316 BARREL NUT CSK PH3: M6 | BARREL NUT CSK PHILLIPS | 316 STAINLESS | M6 – 16.5 THRD |
| MPC16PM08 | MPC102 | 316 BARREL NUT CSK PH3: M8 | BARREL NUT CSK PHILLIPS | 316 STAINLESS | M8 – 20 THRD |
| MPC16PM10 | MPC103 | 316 BARREL NUT CSK PH3: M10 | BARREL NUT CSK PHILLIPS | 316 STAINLESS | M10 |
