Description

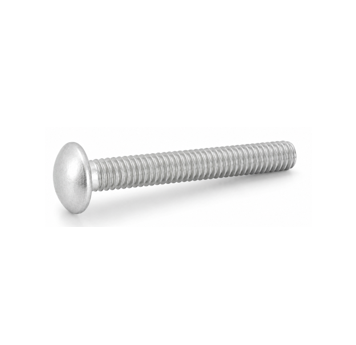

In applications where a wide grip range is required and a flush bolt break to the collar is beneficial, Huck Magna-Grip is the ideal fastener for the job. Like all Huck engineered fasteners, Magna-Grip offers the highest level of vibration-resistance possible. Magna-Grip installs reliably, and consistently provides high, uniform installed values.
- Offers the highest level of vibration resistance available
- Consistently provides high, uniform installed values
- Wide grip range can replace up to 4 traditional HuckBolts
| PART | PART | DESCRIPTION | SIZE | GRIP |
|---|---|---|---|---|
| MGPB-E6-10 | HBDA-0610 | HUCK ALUMINIUM MAGNAGRIP BUTTON LOCK BOLT | 4.8MM x 45.5MM | 1.5MM – 15.87MM |
| MGPB-E8-10 | HBDA-0810 | HUCK ALUMINIUM MAGNAGRIP BUTTON LOCK BOLT | 6.4MM X 52MM | 1.57MM-15.87MM |
| MGPB-E8-20 | HBDA-0820 | HUCK ALUMINIUM MAGNAGRIP BUTTON LOCK BOLT | 6.4MM X 67MM | 6.3MM X 31.8MM |
| MGPB-E10-12 | HBDA-1012 | HUCK ALUMINIUM MAGNAGRIP BUTTON LOCK BOLT | 7.9MM X 61MM | 1.6MM-9.1MM |
| MGPB-E12-14 | HBDA-1214 | HUCK ALUMINIUM MAGNAGRIP BUTTON LOCK BOLT | 9.5MM X 74MM | 3.18MM-22.2MM |
| MGPB-E12-26 | HBDA-1226 | HUCK ALUMINIUM MAGNAGRIP BUTTON LOCK BOLT | 9.5MM X 90MM | 19.1MM X 41.2MM |
